SPECIFICATIONS
Magnification | 5 - 25x |
Objective Lens Diameter | 56 mm |
Eye Relief | 3.7 inches |
Field of View | 24.0 - 5.2 ft @ 100 yds |
Tube Size | 34 mm |
Elevation Turret Style | Locking / Zero Stop |
Windage Turret Style | Locking |
Adjustment Graduation | 1/4 MOA |
Travel Per Rotation | 25 MOA |
Max Elevation Adjustment | 110 MOA |
Max Windage Adjustment | 78 MOA |
Parallax Setting | 15 yards to infinity |

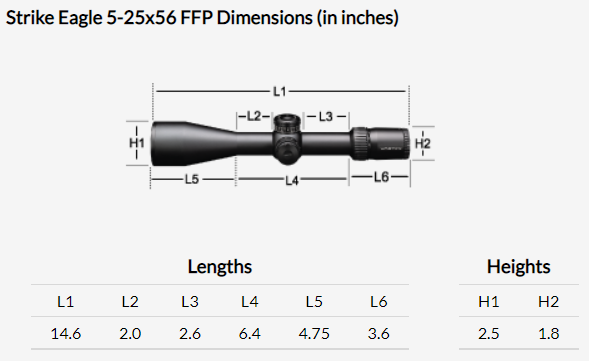

Length | 14.6 inches |
Weight | 30.4 oz |
FEATURES
XD™ Lens Elements | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. |
Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
First Focal Plane Reticle | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
Glass-Etched Reticle | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
Illuminated Reticle | Provides precise aiming under low-light conditions |
ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
Shockproof | Rugged construction withstands recoil and impact. |
Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
Side Focus | Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal. |
Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
Matte Anodized Finish | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. |
Tactical Locking Turrets | Integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments. |
Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
Throw Lever | The included throw lever can be installed for quick and easy magnification adjustments. |
RevStop™ Zero System | Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments. |
