SPECIFICATIONS
Magnification | 4.5 – 22 |
---|---|
Objective Lens Diameter | 50 mm |
Eye Relief | 4.0 inches |
Field of View | 23.5-4.7 ft/100 yards |
Tube Size | 30 mm |
Turret Style | Locking- Exposed |
Windage Turret Style | Capped |
Elevation Adjustment Graduation | .1 MRAD |
Windage Adjustment Graduation | .1 MRAD |
Elevation Travel per Rotation | 6 MRAD |
Windage Travel per Rotation | 6 MRAD |
Max Elevation Adjustment | 22.4 MRAD |
Max Windage Adjustment | 12.7 MRAD |
Parallax Setting | 25 yards to infinity |

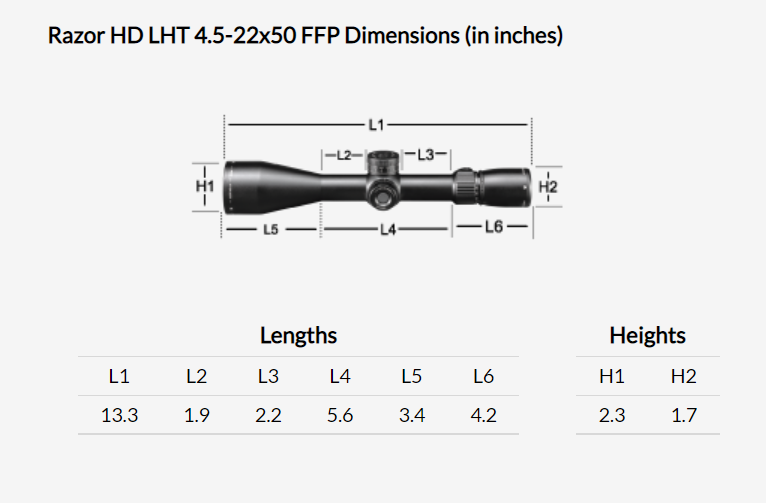

Length | 13.3 inches |
Weight | 21.7 oz |
