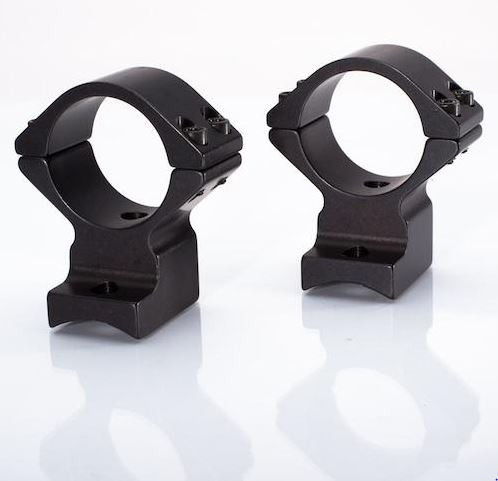

Made in America, these Savage pre-Accutrigger Scope Mounts made by Talley Manufacturing offer a unique and simplified one-piece scope ring and base solution for Savage pre-Accutrigger rifles with flat rear receivers. This simplified mounting system eliminates the possibility of an “out of alignment” interface or “loose connection” between the ring and base of traditional two-piece designs. Ultimately this provides more strength and durability than rival steel rings and bases, but with a lighter overall weight. Fully CNC machined from lightweight aircraft-grade aluminum to the industries tightest tolerances, this rigid scope mounting platform requires no lapping and is ready to go out of the box.
Savage pre-Accutrigger Scope Mounts – Product Dimensions and Weights
|
Ring Height |
Rear Height |
Front Height |
Available for Main Tubes |
Weight (per set) |
|
Low |
.515″ |
.400″ |
1″ / 30MM |
2.0oz / 2.3oz |
|
Low Extended |
.515″ |
.400″ |
1″ / 30MM |
2.2oz / 2.4oz |
|
Medium |
.615″ |
.500″ |
1″ / 30MM |
2.2oz / 2.4oz |
|
Medium Extended |
.615″ |
.500″ |
1″ / 30MM |
2.3oz / 2.5oz |
|
High |
.715″ |
.600″ |
1″ / 30MM |
2.3oz / 2.6oz |
|
High Extended |
.715″ |
.600″ |
1″ / 30MM |
2.4oz / 2.7oz |
- The Height is measured from the top of the action/ receiver to the bottom of the scope tube at the respective mounting location
- Hole spacing measured center to center.
- Extended rings are typically used with long or magnum length actions when mounting a scope with a shorter main tube length. Front mount is offset by approximately 3/8 of an inch.
- Front hole spacing: .860 inches (21.84mm)
- Rear hole spacing: .860 inches (21.84mm)
- Sold in pairs.
- Includes mounting screws and wrench. (6-48 Screws / T-15)
- American Made, Lightweight Alloy Scope Mounts
- Fully CNC Machined
- High-Grade Lightweight Aircraft Aluminum
- Integrated Scope Ring and Base Design
- Lapping Not Required
- Designed to fit Savage pre-Accutrigger actions with a flat rear receiver.
