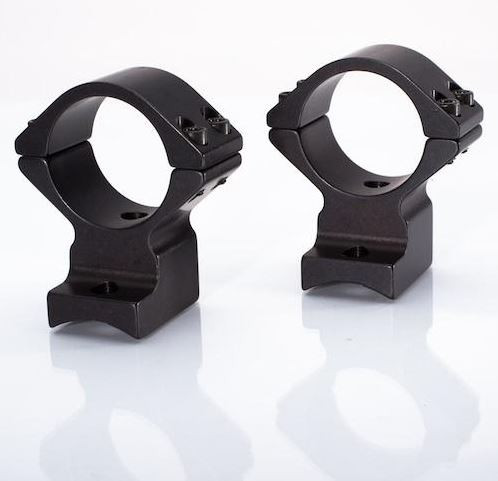

Made in America, these Weatherby Mark V Scope Mounts made by Talley Manufacturing offer a unique and simplified one-piece scope ring and base solution for Weatherby Mark V Non-Magnum (6 Lug) rifles. This simplified mounting system eliminates the possibility of an “out of alignment” interface or “loose connection” between the ring and base of traditional two-piece designs. Ultimately this provides more strength and durability than rival steel rings and bases, but with a lighter overall weight. Fully CNC machined from lightweight aircraft-grade aluminum to the industries tightest tolerances, this rigid scope mounting platform requires no lapping and is ready to go out of the box.
Weatherby Mark V Accumark Scope Mounts – Product Dimensions and Weights
|
Ring Height |
Rear Height |
Front Height |
Available for Main Tubes |
Weight (per set) |
|
Low |
.505″ |
.445″ |
1″ / 30MM |
2.2oz / 2.5oz |
|
Low Extended |
.505″ |
.445″ |
1″ / 30MM |
2.3oz / 2.6oz |
|
Medium |
.605″ |
.545″ |
1″ / 30MM / 34MM |
2.3oz / 2.6oz / 3.0oz |
|
Medium Extended |
.605″ |
.545″ |
1″ / 30MM |
2.4oz / 2.7oz |
|
High |
.705″ |
.645″ |
1″ / 30MM / 34MM |
2.5oz / 2.9oz / 3.2oz |
|
High Extended |
.705″ |
.645″ |
1″ / 30MM |
2.6oz / 3.0oz |
- The Height is measured from the top of the action/ receiver to the bottom of the scope tube at the respective mounting location
- Hole spacing measured center to center.
- Extended scope rings are typically used with long or magnum length actions when mounting a scope with a shorter main tube length. Front mount is offset by approximately 3/8 of an inch.
- Front hole spacing: .860 inches (21.84mm)
- Rear hole spacing: .600 inches (15.24mm)
- Sold in pairs.
- Includes mounting screws and wrench. (6-48 Screws / T-15)
- American Made, Lightweight Alloy Scope Mounts
- Fully CNC Machined
- High-Grade Lightweight Aircraft Aluminum
- Integrated Scope Ring and Base Design
- Lapping Not Required
- Designed to fit Weatherby Mark V Non-Magnum (6 Lug) rifles
